55H140000 | Kabeltronik
Unit Price (€ / mtr.)
5.0218 € *
Available in 7 Days: 3,424 mtr. - if ordered today

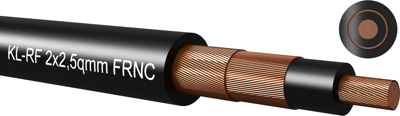

Speaker cable, 55H140000, Kabeltronik
Mainly for permanent installation, even over long distances (sports arenas), while at the same time meeting high safety requirements in terms of fire behaviour. The small outer diameter saves space and weight on cable routes and in cable ducts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | black | |
| Test voltage | 1 kV | |
| Cable cross-section | 4.0 mm² | |
| Outer diameter | 8 mm | |
| Version | speaker cable | |
| Material | FRNC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Number of cores | 2 | |
| Rated voltage | 250 V | |
| Temperature range (unmoved) | -20 °C to 70 °C | |
| Shielding | shielded | |
| Core insulation material | FRNC | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
