480402509 | Kabeltronik
Microphone line, 4-wire, 0.25 mm², shielded, PVC, black, 480402509
Unit Price (€ / mtr.)
3.5224 € *
Available: 114 mtr.
Available in 7 Days: 2,784 mtr. - if ordered today
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 mtr.
3.5224 €
10 mtr.
3.1654 €
50 mtr.
2.7965 €
100 mtr.
2.4276 €
500 mtr.
2.1896 €
*incl. VAT plus shipping costs
Subject to prior sale

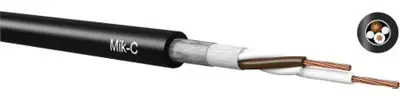

Microphone cables with shielding braid, type Kabeltronik Mik-C.
For AF applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Core insulation material | PE | |
| Temperature range (active) | -15 °C to 70 °C | |
| Marking | No | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| Cable cross-section | 0.25 mm² | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Number of cores | 4 | |
| Outer diameter | 6.4 mm | |
| Material | PVC | |
| Test voltage | 1.2 kV | |
| Product type | microphone cable | |
| Cable material | copper, tin-plated | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
