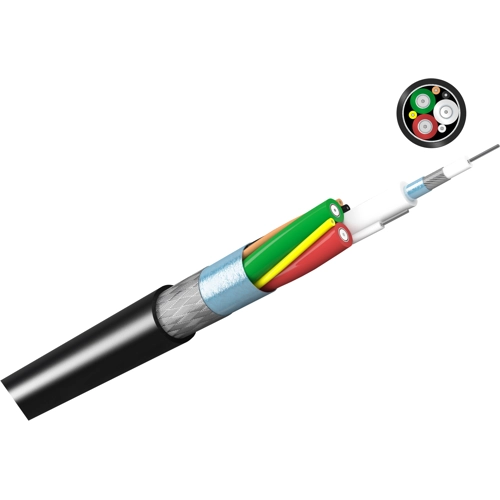

PVC hybrid cable KK 3/4-Mini 7 x 3 x 0.09 mm² + 4 x 0.20 mm², shielded, black, 843750420
Unit Price (€ / mtr.)
9.5557 € *
Available: 50 mtr.
Available in 7 Days: 5,140 mtr. - if ordered today
Total Price:
9.56 € *
Price list
Quantity
Price per unit*
1 mtr.
9.5557 €
10 mtr.
8.8417 €
50 mtr.
8.1277 €
100 mtr.
7.6517 €
*incl. VAT plus shipping costs
Subject to prior sale
Combination cable, 843750420, Kabeltronik
Combination cable for the transmission of RGB signals and control instructions. This cable has maximum protection against interferences due to the double total screen and the double screen fo the video elements.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Core insulation material | PVC/PE | |
| Material | PVC | |
| Version | combination cable | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Halogen free | No | |
| Outer diameter | 9 mm | |
| Colour | black | |
| Number of cores | 7 | |
| Shielding | shielded | |
| Cable cross-section | 3 x 0.09 mm² + 4 x 0.20 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ring with 50 meters |
| Customs tariff number | 85442000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
