842753100 | Kabeltronik

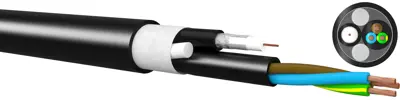

PVC hybrid cable KVN 2/1 5 x 2 x 0.22 mm² + 3 x 1.0 mm², shielded, black, 842753100
Unit Price (€ / mtr.)
8.1753 € *
Available in 7 Days: 273 mtr. - if ordered today
Combination cable, 842753100, Kabeltronik
Very flexible combination cable for use for image transmission and power supply, e.g. surveillance monitors. The mains cable is separately sheathed and designed for plug installation without additional effort. Due to its design, the cable can also be used for mobile applications or reel operation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Colour | black | |
| Cable cross-section | 2 x 0.22 mm² + 3 x 1.0 mm² | |
| Outer diameter | 12.5 mm | |
| Version | combination cable | |
| Material | PVC | |
| Temperature range (active) | -15 °C to 70 °C | |
| Number of cores | 5 | |
| Temperature range (unmoved) | -25 °C to 70 °C | |
| Shielding | shielded | |
| Core insulation material | polypropylene/TPE | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85442000 |
| Country of origin | DE |
| Original Packaging | Ring with 50 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
