PVC hybrid cable KVN 1/1 4 x 1 x 0.22 mm² + 3 x 1.0 mm², shielded, black, 841753100
Unit Price (€ / mtr.)
6.426 € *
Available in 7 Days: 1,957 mtr. - if ordered today

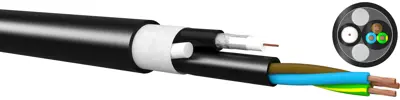

Combination cable, 841753100, Kabeltronik
Very flexible combination cable for use for image transmission and power supply, e.g. surveillance monitors. The mains cable is separately sheathed and designed for plug installation without additional effort. Due to its design, the cable can also be used for mobile applications or reel operation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Core insulation material | polypropylene/TPE | |
| Material | PVC | |
| Version | combination cable | |
| Temperature range (unmoved) | -25 °C to 70 °C | |
| Temperature range (active) | -15 °C to 70 °C | |
| Halogen free | No | |
| Outer diameter | 12.5 mm | |
| Colour | black | |
| Number of cores | 4 | |
| Shielding | shielded | |
| Cable cross-section | 1 x 0.22 mm² + 3 x 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Ring with 50 meters |
| Customs tariff number | 85442000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
