780260701 | Kabeltronik

TPE-switching strand, UL-Style 11958, 0.14 mm², AWG 26-7, 7 x 0.16 mm, white, outer Ø 1.05 mm, 780260701

Order No.: 91F8423
MPN:
780260701
Series: UL-Style 11958
780260701 Kabeltronik Insulated stranded wires

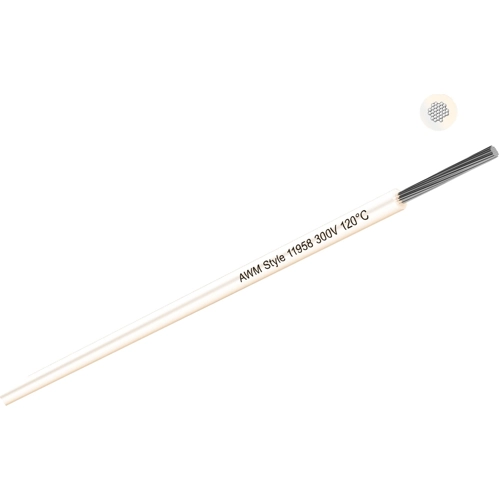

Image may differ
Unit Price (€ / mtr.)
0.2939 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
146.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 mtr.
0.2939 €

Stranded wire, 780260701, Kabeltronik

Stranded wire for internal wiring of electrical devices and control cabinets. Due to extremely thin wall thicknesses and a wide temperature range, it is an excellent alternative to wires with PVC, fluoropolymer or cross-linked insulation. The insulation material has good bending and flexing properties, excellent ageing characteristics and very good chemical resistance. The material is also flame-retardant and free of paint-wetting impairment substances.

Technical specifications
Filter Property Value
Bending radius moved 13.65 mm
Standard number UL
Cable cross-section 0.14 mm²
Test voltage 2.5 kV
Rated voltage 300 V
Outer diameter 1.05 mm
AWG cross-section AWG 26-7
Core insulation material TPE
Bending radius unmoved 8.4 mm
Colour white
Halogen free No
Cable structure 7 x 0.16 mm
Temperature range (unmoved) -40 °C to 120 °C
Cable material copper, tin-plated
Logistics
Property Value
Country of origin DE
Original Packaging Reel with 500 meters
Customs tariff number 85444995
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
