780221907 | Kabeltronik

TPE-switching strand, UL-Style 11958, 0.34 mm², AWG 22-19, 19 x 0.16 mm, blue, outer Ø 1.4 mm, 780221907

Order No.: 91F8406
MPN:
780221907
Series: UL-Style 11958
780221907 Kabeltronik Insulated stranded wires

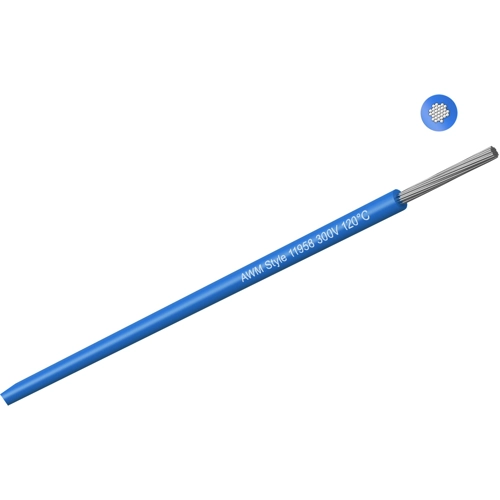

Image may differ
Unit Price (€ / mtr.)
0.3451 € *
Available in 7 Days: 3,125 mtr. - if ordered today
Total Price:
172.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 mtr.
0.3451 €

Stranded wire, 780221907, Kabeltronik

Stranded wire for internal wiring of electrical devices and control cabinets. Due to extremely thin wall thicknesses and a wide temperature range, it is an excellent alternative to wires with PVC, fluoropolymer or cross-linked insulation. The insulation material has good bending and flexing properties, excellent ageing characteristics and very good chemical resistance. The material is also flame-retardant and free of paint-wetting impairment substances.

Technical specifications
Filter Property Value
Temperature range (unmoved) -40 °C to 120 °C
Bending radius unmoved 11.2 mm
Bending radius moved 18.2 mm
Halogen free No
Cable material copper, tin-plated
Standard number UL
Outer diameter 1.4 mm
Rated voltage 300 V
Cable cross-section 0.34 mm²
AWG cross-section AWG 22-19
Cable structure 19 x 0.16 mm
Test voltage 2.5 kV
Core insulation material TPE
Colour blue
Logistics
Property Value
Original Packaging Reel with 500 meters
Country of origin DE
Customs tariff number 85444995
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
