780201808 | Kabeltronik

TPE-switching strand, UL-Style 11958, 0.56 mm², AWG 20-18, 18 x 0.2 mm, red, outer Ø 1.6 mm, 780201808

Order No.: 91F8403
MPN:
780201808
Series: UL-Style 11958

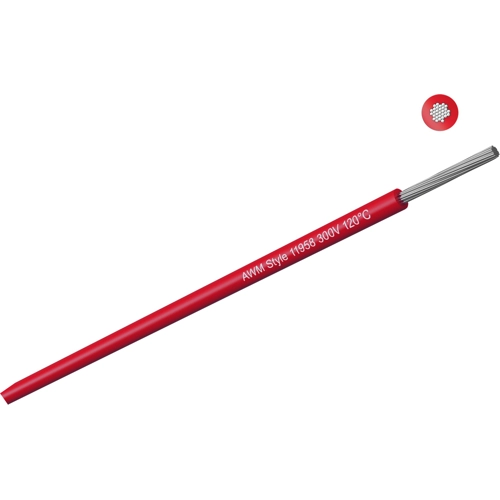

780201808 Kabeltronik Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.4403 € *
Available: 1,000 mtr.
Available in 7 Days: 1,000 mtr. - if ordered today
Total Price:
220.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 mtr.
0.4403 €

Stranded wire, 780201808, Kabeltronik

Stranded wire for internal wiring of electrical devices and control cabinets. Due to extremely thin wall thicknesses and a wide temperature range, it is an excellent alternative to wires with PVC, fluoropolymer or cross-linked insulation. The insulation material has good bending and flexing properties, excellent ageing characteristics and very good chemical resistance. The material is also flame-retardant and free of paint-wetting impairment substances.

Technical specifications
Bending radius moved 20.8 mm
Outer diameter 1.6 mm
Test voltage 2.5 kV
Standard number UL
Core insulation material TPE
Cable structure 18 x 0.2 mm
Rated voltage 300 V
Cable material copper, tin-plated
Halogen free No
Bending radius unmoved 12.8 mm
Colour red
Temperature range (unmoved) -40 °C to 120 °C
AWG cross-section AWG 20-18
Cable cross-section 0.56 mm²
Logistics
Original Packaging Reel with 500 meters
Customs tariff number 85444995
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
