370102608 | Kabeltronik

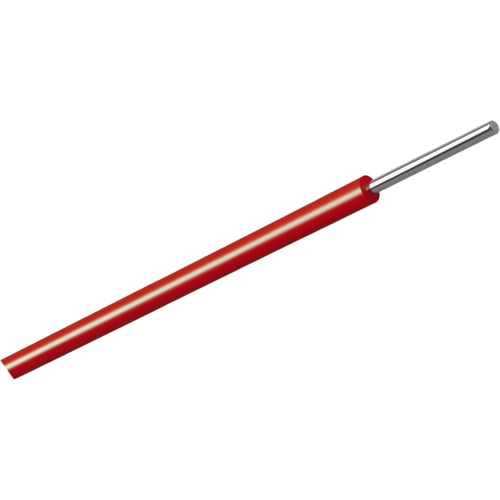

ETFE-wire wrap wire, 7Y ETFE, 0.13 mm², AWG 26, red, outer Ø 0.91 mm, 370102608
Unit Price (€ / mtr.)
0.6426 € *
Available: 300 mtr.
Available in 7 Days: 11,900 mtr. - if ordered today
Total Price:
64.26 € *
Price list
Quantity
Price per unit*
100 mtr.
0.6426 €
500 mtr.
0.5712 €
1000 mtr.
0.5117 €
2500 mtr.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
ETFE-wire wrap switching wire, 370102608, Kabeltronik
In the fields of aerospace and chemical industry as well as general wiring technology, where high mechanical and thermal characteristics are required. Applicable for the Wire Wrap technology.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -65 to 150 °C | |
| Rated voltage | 600 V | |
| Cable material | copper, tin-plated | |
| Test voltage | 3 kV | |
| Outer diameter | 0.91 mm | |
| Core insulation material | ETFE | |
| Halogen free | No | |
| Colour | red | |
| Cable cross-section | 0.13 mm² | |
| AWG cross-section | AWG 26 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Carton with 100 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
