270102009 | Kabeltronik

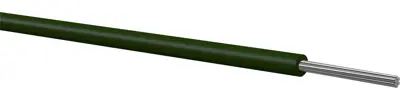

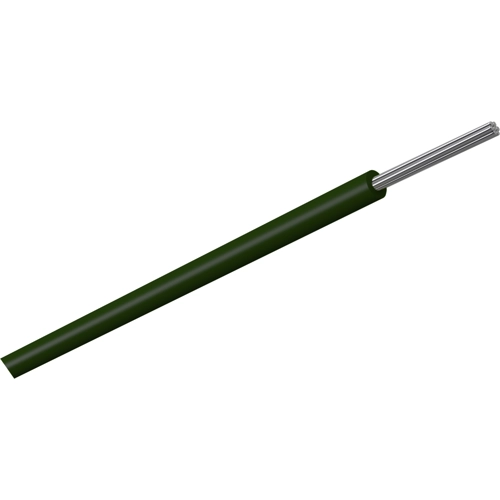

PVC-switching strand, TSR, 0.56 mm², AWG 20/7, 7 x 0.32 mm, black, outer Ø 1.45 mm, 270102009
Unit Price (€ / mtr.)
0.3808 € *
Available in 7 Days: 5,280 mtr. - if ordered today
Total Price:
190.40 € *
Price list
Quantity
Price per unit*
500 mtr.
0.3808 €
1000 mtr.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 270102009, Kabeltronik
Termipoint hook-up wire enables quick, reliable, and solder-free cable connections in electrical and electronic devices, especially in confined spaces. The insulation made of semi-rigid PVC offers high resistance to acids, alkalis, and many oils. Thanks to the stranded construction and durable insulation, this wire is ideal for the use of Insulation Displacement Connectors (IDC).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.56 mm² | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| AWG cross-section | AWG 20/7 | |
| Test voltage | 2 kV | |
| Temperature range (active) | -10 °C to 105 °C | |
| Cable material | copper, tin-plated | |
| Rated voltage | 300 V | |
| Colour | black | |
| Outer diameter | 1.45 mm | |
| Halogen free | No | |
| Cable structure | 7 x 0.32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
