270102008 | Kabeltronik

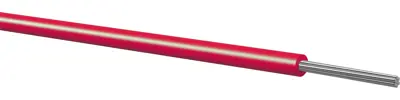

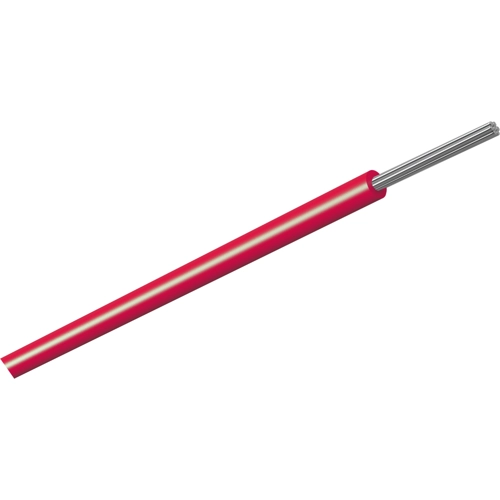

PVC-switching strand, TSR, 0.56 mm², AWG 20/7, 7 x 0.32 mm, red, outer Ø 1.45 mm, 270102008
Unit Price (€ / mtr.)
0.3808 € *
Available: 500 mtr.
Available in 7 Days: 2,660 mtr. - if ordered today
Total Price:
190.40 € *
Price list
Quantity
Price per unit*
500 mtr.
0.3808 €
1000 mtr.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 270102008, Kabeltronik
Termipoint hook-up wire enables quick, reliable, and solder-free cable connections in electrical and electronic devices, especially in confined spaces. The insulation made of semi-rigid PVC offers high resistance to acids, alkalis, and many oils. Thanks to the stranded construction and durable insulation, this wire is ideal for the use of Insulation Displacement Connectors (IDC).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20/7 | |
| Rated voltage | 300 V | |
| Cable material | copper, tin-plated | |
| Test voltage | 2 kV | |
| Product type | switching strand | |
| Temperature range (active) | -10 °C to 105 °C | |
| Cable structure | 7 x 0.32 mm | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Colour | red | |
| Outer diameter | 1.45 mm | |
| Cable cross-section | 0.56 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 500 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
