270102005 | Kabeltronik

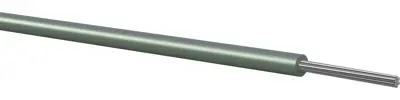

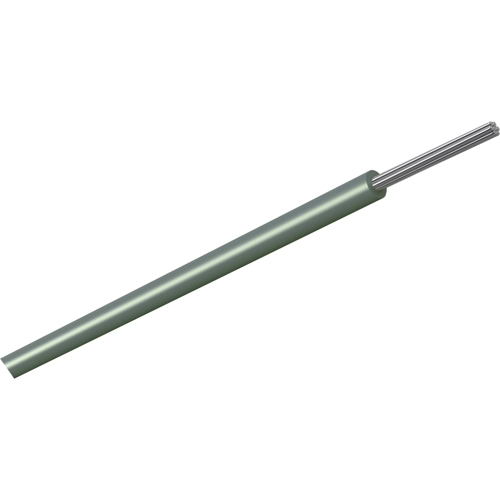

PVC-switching strand, TSR, 0.56 mm², AWG 20/7, 7 x 0.32 mm, gray, outer Ø 1.45 mm, 270102005
Unit Price (€ / mtr.)
0.3808 € *
Available: 0 mtr.
Available in 7 Days: 5,790 mtr.
Leadtime: 1 Week **
Total Price:
190.40 € *
Price list
Quantity
Price per unit*
500 mtr.
0.3808 €
1000 mtr.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 270102005, Kabeltronik
Termipoint hook-up wire enables quick, reliable, and solder-free cable connections in electrical and electronic devices, especially in confined spaces. The insulation made of semi-rigid PVC offers high resistance to acids, alkalis, and many oils. Thanks to the stranded construction and durable insulation, this wire is ideal for the use of Insulation Displacement Connectors (IDC).
Technical specifications
| AWG cross-section | AWG 20/7 | |
| Outer diameter | 1.45 mm | |
| Core insulation material | PVC | |
| Temperature range (active) | -10 °C to 105 °C | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.56 mm² | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Rated voltage | 300 V | |
| Cable structure | 7 x 0.32 mm | |
| Test voltage | 2 kV | |
| Colour | gray | |
| Halogen free | No |
Download
Logistics
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 500 meters |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
