270102004 | Kabeltronik

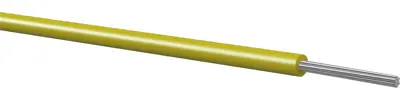

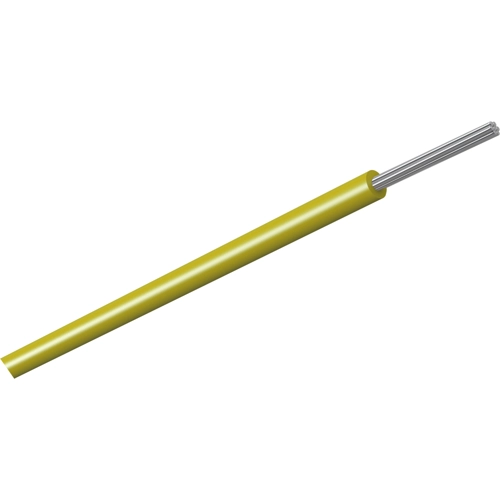

PVC-switching strand, TSR, 0.56 mm², AWG 20/7, 7 x 0.32 mm, yellow, outer Ø 1.45 mm, 270102004
Unit Price (€ / mtr.)
0.3808 € *
Available: 500 mtr.
Total Price:
190.40 € *
Price list
Quantity
Price per unit*
500 mtr.
0.3808 €
1000 mtr.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 270102004, Kabeltronik
Termipoint hook-up wire enables quick, reliable, and solder-free cable connections in electrical and electronic devices, especially in confined spaces. The insulation made of semi-rigid PVC offers high resistance to acids, alkalis, and many oils. Thanks to the stranded construction and durable insulation, this wire is ideal for the use of Insulation Displacement Connectors (IDC).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 1.45 mm | |
| Test voltage | 2 kV | |
| Rated voltage | 300 V | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Cable cross-section | 0.56 mm² | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Cable structure | 7 x 0.32 mm | |
| Colour | yellow | |
| Product type | switching strand | |
| AWG cross-section | AWG 20/7 | |
| Temperature range (active) | -10 °C to 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
