160125009 | Kabeltronik

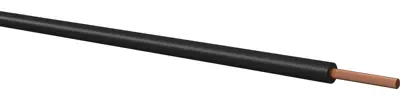

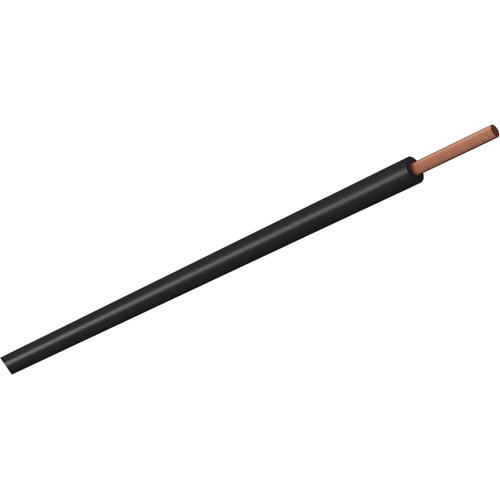

PVC-stranded wire, highly flexible, LifY, 2.5 mm², 651 x 0.07 mm, black, outer Ø 3.8 mm, 160125009
Unit Price (€ / mtr.)
2.9393 € *
Available: 200 mtr.
Available in 7 Days: 11,200 mtr. - if ordered today
Total Price:
2.94 € *
Price list
Quantity
Price per unit*
1 mtr.
2.9393 €
10 mtr.
2.6775 €
100 mtr.
2.4038 €
1000 mtr.
2.0468 €
2500 mtr.
1.7850 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC stranded wire, 160125009, Kabeltronik
General wiring technology in the electronics field, as well as measuring line, where high flexibility is demanded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | No | |
| Cable structure | 651 x 0.07 mm | |
| Outer diameter | 3.8 mm | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Rated voltage | 900 V | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Test voltage | 2.5 kV | |
| Cable cross-section | 2.5 mm² | |
| Cable material | copper, bright | |
| Colour | black | |
| Conductor category | CL.6 = finest stranded |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
