160110003 | Kabeltronik

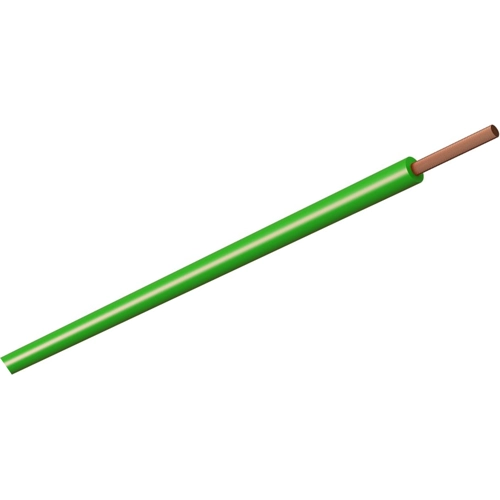

PVC-stranded wire, highly flexible, LifY, 1.0 mm², 512 x 0.05 mm, green, outer Ø 2.6 mm, 160110003
Unit Price (€ / mtr.)
1.5589 € *
Available: 117 mtr.
Available in 7 Days: 1,990 mtr. - if ordered today
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
1 mtr.
1.5589 €
10 mtr.
1.4280 €
100 mtr.
1.2971 €
1000 mtr.
1.1305 €
2500 mtr.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded hook-up wires, ultra-flexible, type LifY.
Particularly suitable for applications demanding maximum flexibility
Cross-section 1.0 mm², outer diameter 2.6 mm,.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 2.6 mm | |
| Rated voltage | 900 V | |
| Halogen free | No | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Cable structure | 512 x 0.05 mm | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable material | copper, bright | |
| Colour | green | |
| Cable cross-section | 1.0 mm² | |
| Conductor category | CL.6 = finest stranded | |
| Test voltage | 2.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
