160105011 | Kabeltronik

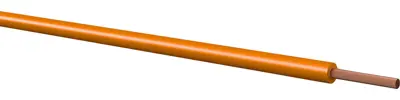

PVC-switching strand, LifY, 0.5 mm², 256 x 0.05 mm, orange, outer Ø 2 mm, 160105011
Unit Price (€ / mtr.)
0.9758 € *
Available in 7 Days: 7,388 mtr. - if ordered today
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 mtr.
0.9758 €
10 mtr.
0.9044 €
100 mtr.
0.8211 €
1000 mtr.
0.7140 €
2500 mtr.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC stranded wire, 160105011, Kabeltronik
General wiring technology in the electronics field, as well as measuring line, where high flexibility is demanded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Conductor category | CL.6 = finest stranded | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Cable cross-section | 0.5 mm² | |
| Halogen free | No | |
| Rated voltage | 900 V | |
| Temperature range (active) | -5 °C to 70 °C | |
| Cable structure | 256 x 0.05 mm | |
| Colour | orange | |
| Core insulation material | PVC | |
| Outer diameter | 2 mm | |
| Test voltage | 2.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
