160105009 | Kabeltronik

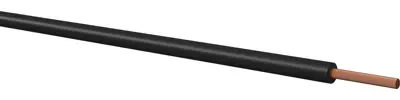

PVC-switching strand, extremely flexible, LifY, 0.5 mm², 256 x 0.05 mm, black, outer Ø 2 mm, 160105009
Unit Price (€ / mtr.)
0.9758 € *
Available: 100 mtr.
Available in 7 Days: 39,700 mtr. - if ordered today
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 mtr.
0.9758 €
10 mtr.
0.9044 €
100 mtr.
0.8211 €
1000 mtr.
0.7140 €
2500 mtr.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC stranded wire, 160105009, Kabeltronik
General wiring technology in the electronics field, as well as measuring line, where high flexibility is demanded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 2 mm | |
| Version | extremely flexible | |
| Test voltage | 2.5 kV | |
| Rated voltage | 900 V | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Cable cross-section | 0.5 mm² | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Conductor category | CL.6 = finest stranded | |
| Cable structure | 256 x 0.05 mm | |
| Colour | black | |
| Product type | switching strand | |
| Temperature range (active) | -5 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
