160105008 | Kabeltronik

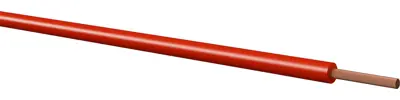

PVC-stranded wire, highly flexible, LifY, 0.5 mm², 256 x 0.05 mm, red, outer Ø 2 mm, 160105008
Unit Price (€ / mtr.)
0.9758 € *
Available: 100 mtr.
Available in 7 Days: 38,370 mtr. - if ordered today
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 mtr.
0.9758 €
10 mtr.
0.9044 €
100 mtr.
0.8211 €
1000 mtr.
0.7140 €
2500 mtr.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC stranded wire, 160105008, Kabeltronik
General wiring technology in the electronics field, as well as measuring line, where high flexibility is demanded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 70 °C | |
| Rated voltage | 900 V | |
| Cable material | copper, bright | |
| Test voltage | 2.5 kV | |
| Outer diameter | 2 mm | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Colour | red | |
| Cable structure | 256 x 0.05 mm | |
| Cable cross-section | 0.5 mm² | |
| Conductor category | CL.6 = finest stranded |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 100 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
