099260709 | Kabeltronik

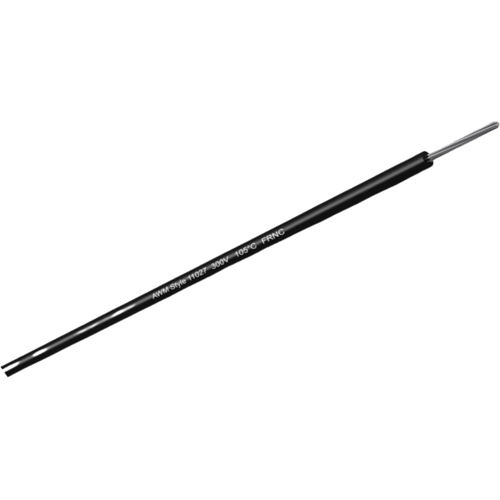

MPPE-switching strand, halogen free, UL-Style 11027, AWG 26/7, 7 x 0.16 mm, black, outer Ø 0.95 mm, 099260709
Unit Price (€ / mtr.)
0.4284 € *
Next delivery: 250 mtr. on 2025-12-04
Stranded wire , 099260709, Kabeltronik
The 099260709 is a stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameter and don´t contain softener. Therefore it´s an environment friendly replacement for PVC stranded wire. Stranded wire according to UL is primarily used for the internal wiring in electrical equipment as well as electrical control boxes and is steady to a large extent against acids, caustic solutions and many oils.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Standard number | UL, cUL | |
| AWG cross-section | AWG 26/7 | |
| Test voltage | 3 kV | |
| Product type | switching strand | |
| Colour | black | |
| Outer diameter | 0.95 mm | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Temperature range (active) | -20 °C to 105 °C | |
| Rated voltage | 300 V | |
| Cable material | copper, tin-plated | |
| Halogen free | Yes | |
| Cable structure | 7 x 0.16 mm | |
| Core insulation material | mPPE |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 250 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
