099220701 | Kabeltronik

MPPE-switching strand, halogen free, UL-Style 11027, AWG 22/7, 7 x 0.25 mm, white, outer Ø 1.2 mm, 099220701

Order No.: 92F934
MPN:
099220701
Series: UL-Style 11027
099220701 Kabeltronik Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.4998 € *
Available: 250 mtr.
Total Price:
124.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 mtr.
0.4998 €

Stranded wire , 099220701, Kabeltronik

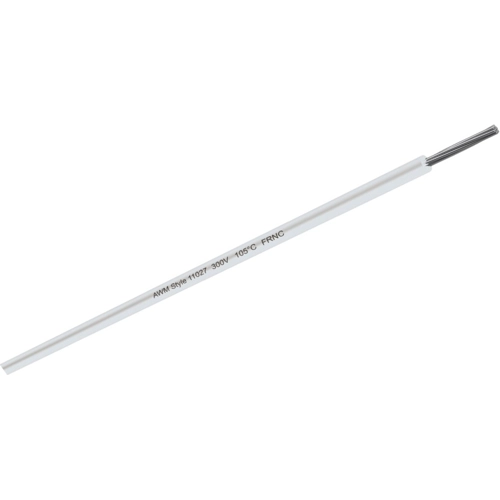

The 099220701 is a stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameter and don´t contain softener. Therefore it´s an environment friendly replacement for PVC stranded wire. Stranded wire according  to UL is primarily used for the internal wiring in electrical equipment as well as electrical control boxes and is steady to a large extent  against acids, caustic solutions and many oils.

Technical specifications
Rated voltage 300 V
Temperature range (unmoved) -40 °C to 105 °C
Core insulation material mPPE
AWG cross-section AWG 22/7
Standard number UL, cUL
Halogen free Yes
Outer diameter 1.2 mm
Cable structure 7 x 0.25 mm
Temperature range (active) -20 °C to 105 °C
Colour white
Cable material copper, tin-plated
Test voltage 3 kV
Logistics
Country of origin DE
Original Packaging Reel with 250 meters
Customs tariff number 85444995
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
