098240708 | Kabeltronik

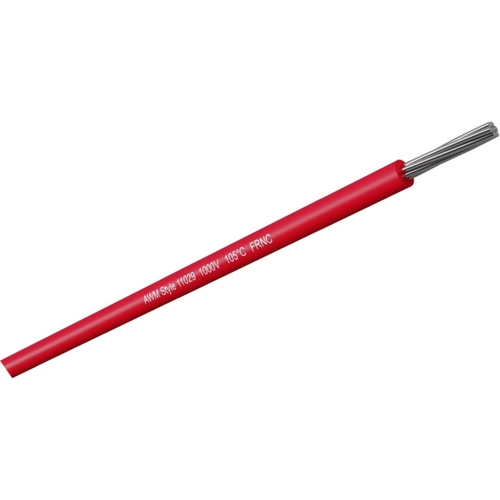

MPPE-switching strand, halogen free, UL-Style 11029, 0.22 mm², AWG 24/7, 7 x 0.2 mm, red, outer Ø 1.3 mm, 098240708
Unit Price (€ / mtr.)
0.5236 € *
Available: 750 mtr.
Available in 7 Days: 22,010 mtr. - if ordered today
Stranded wire, 098240708, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| AWG cross-section | AWG 24/7 | |
| Outer diameter | 1.3 mm | |
| Standard number | UL, cUL | |
| Core insulation material | mPPE | |
| Temperature range (active) | -20 °C to 105 °C | |
| Material | LSZH | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.22 mm² | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Rated voltage | 1000 V | |
| Cable structure | 7 x 0.2 mm | |
| Test voltage | 10 kV | |
| Colour | red | |
| Halogen free | Yes |
Download
Logistics
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 250 meters |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
