098200709 | Kabeltronik

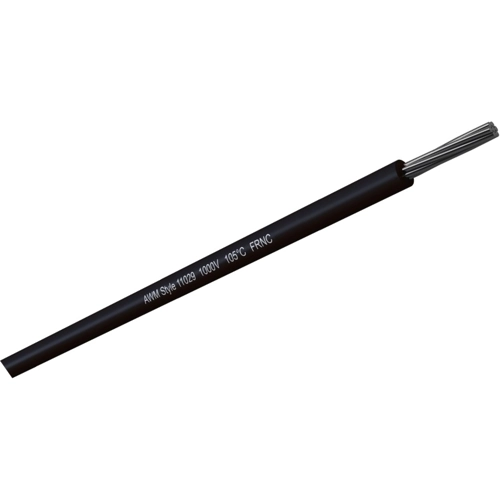

MPPE-switching strand, halogen free, UL-Style 11029, 0.56 mm², AWG 20/7, 7 x 0.32 mm, black, outer Ø 1.65 mm, 098200709
Unit Price (€ / mtr.)
0.7259 € *
Available: 750 mtr.
Stranded wire, 098200709, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
Filter | Property | Value |
---|---|---|
Cable material | copper, tin-plated | |
Temperature range (unmoved) | -40 °C to 105 °C | |
AWG cross-section | AWG 20/7 | |
Halogen free | Yes | |
Colour | black | |
Material | LSZH | |
Rated voltage | 1000 V | |
Standard number | UL, cUL | |
Core insulation material | mPPE | |
Cable cross-section | 0.56 mm² | |
Cable structure | 7 x 0.32 mm | |
Outer diameter | 1.65 mm | |
Test voltage | 10 kV | |
Temperature range (active) | -20 °C to 105 °C |
Download
Logistics
Property | Value |
---|---|
Country of origin | DE |
Customs tariff number | 85444995 |
Original Packaging | Reel with 250 meters |
Compliance
Property | Value |
---|---|
RoHS conform | Yes |
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
