098200708 | Kabeltronik

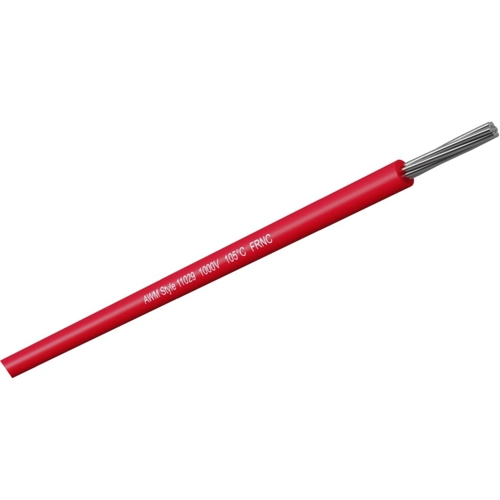

MPPE-switching strand, halogen free, UL-Style 11029, 0.56 mm², AWG 20/7, 7 x 0.32 mm, red, outer Ø 1.65 mm, 098200708
Unit Price (€ / mtr.)
0.7259 € *
Available: 500 mtr.
Available in 7 Days: 8,539 mtr. - if ordered today
Stranded wire, 098200708, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Rated voltage | 1000 V | |
| Standard number | UL, cUL | |
| AWG cross-section | AWG 20/7 | |
| Temperature range (active) | -20 °C to 105 °C | |
| Material | LSZH | |
| Core insulation material | mPPE | |
| Product type | switching strand | |
| Outer diameter | 1.65 mm | |
| Cable cross-section | 0.56 mm² | |
| Cable structure | 7 x 0.32 mm | |
| Test voltage | 10 kV | |
| Cable material | copper, tin-plated | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 250 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
