098200702 | Kabeltronik

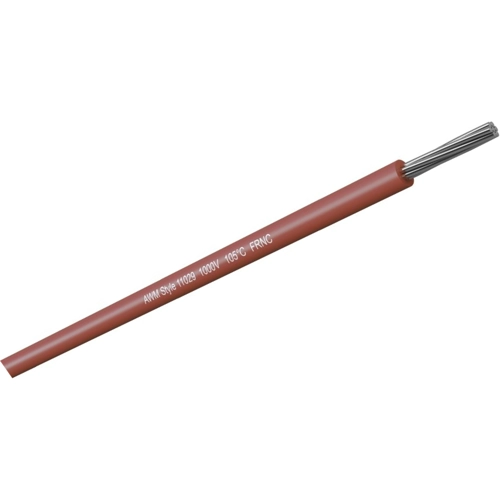

MPPE-switching strand, halogen free, UL-Style 11029, 0.56 mm², AWG 20/7, 7 x 0.32 mm, brown, outer Ø 1.65 mm, 098200702
Unit Price (€ / mtr.)
0.7259 € *
Available in 7 Days: 5,470 mtr. - if ordered today
Stranded wire, 098200702, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20/7 | |
| Core insulation material | mPPE | |
| Temperature range (active) | -20 °C to 105 °C | |
| Test voltage | 10 kV | |
| Colour | brown | |
| Halogen free | Yes | |
| Outer diameter | 1.65 mm | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Material | LSZH | |
| Standard number | UL, cUL | |
| Rated voltage | 1000 V | |
| Product type | switching strand | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.56 mm² | |
| Cable structure | 7 x 0.32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 250 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
