098200701 | Kabeltronik
MPPE-switching strand, halogen free, UL-Style 11029, 0.56 mm², AWG 18/19, 7 x 0.32 mm, white, outer Ø 1.65 mm, 098200701
Unit Price (€ / mtr.)
0.7259 € *
Available in 7 Days: 7,227 mtr. - if ordered today

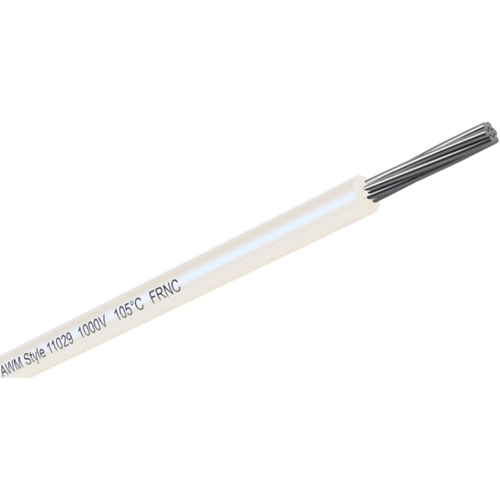

Stranded wire, 098200701, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Test voltage | 10 kV | |
| Colour | white | |
| Outer diameter | 1.65 mm | |
| Core insulation material | mPPE | |
| Temperature range (active) | -20 °C to 105 °C | |
| Cable structure | 7 x 0.32 mm | |
| Cable material | copper, tin-plated | |
| AWG cross-section | AWG 18/19 | |
| Material | LSZH | |
| Rated voltage | 1000 V | |
| Standard number | UL, cUL | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Cable cross-section | 0.56 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 250 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
