098181909 | Kabeltronik
MPPE-switching strand, halogen free, UL-Style 11029, 0.88 mm², AWG 18/19, 19 x 0.254 mm, black, outer Ø 2 mm, 098181909
Unit Price (€ / mtr.)
0.8568 € *
Available: 500 mtr.
Available in 7 Days: 2,000 mtr. - if ordered today

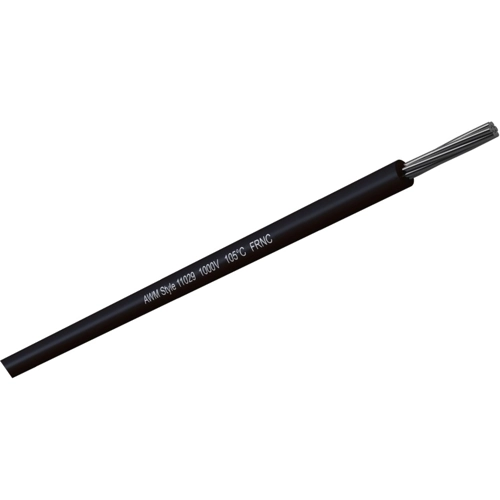

Stranded wire, 098181909, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| Outer diameter | 2 mm | |
| Test voltage | 10 kV | |
| Standard number | UL, cUL | |
| Material | LSZH | |
| Temperature range (active) | -20 °C to 105 °C | |
| Core insulation material | mPPE | |
| Cable structure | 19 x 0.254 mm | |
| Rated voltage | 1000 V | |
| Cable material | copper, tin-plated | |
| Halogen free | Yes | |
| Colour | black | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| AWG cross-section | AWG 18/19 | |
| Cable cross-section | 0.88 mm² |
Download
Logistics
| Original Packaging | Reel with 250 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
