098181908 | Kabeltronik

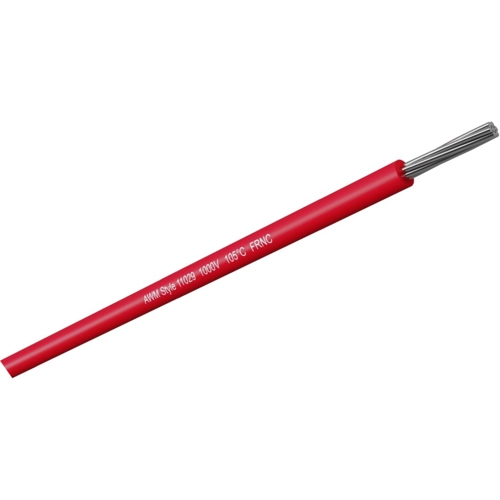

MPPE-switching strand, halogen free, UL-Style 11029, 0.88 mm², AWG 18/19, 19 x 0.254 mm, red, outer Ø 2 mm, 098181908
Unit Price (€ / mtr.)
0.8568 € *
Available: 250 mtr.
Available in 7 Days: 3,500 mtr. - if ordered today
Stranded wire, 098181908, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | mPPE | |
| Halogen free | Yes | |
| Standard number | UL, cUL | |
| Test voltage | 10 kV | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Colour | red | |
| Outer diameter | 2 mm | |
| Cable material | copper, tin-plated | |
| Temperature range (active) | -20 °C to 105 °C | |
| Material | LSZH | |
| Cable structure | 19 x 0.254 mm | |
| AWG cross-section | AWG 18/19 | |
| Rated voltage | 1000 V | |
| Cable cross-section | 0.88 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 250 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
