098181907 | Kabeltronik
MPPE-switching strand, halogen free, UL-Style 11029, 0.88 mm², AWG 18/19, 19 x 0.254 mm, blue, outer Ø 2 mm, 098181907
Unit Price (€ / mtr.)
0.8568 € *
Available: 250 mtr.
Available in 7 Days: 5,750 mtr. - if ordered today

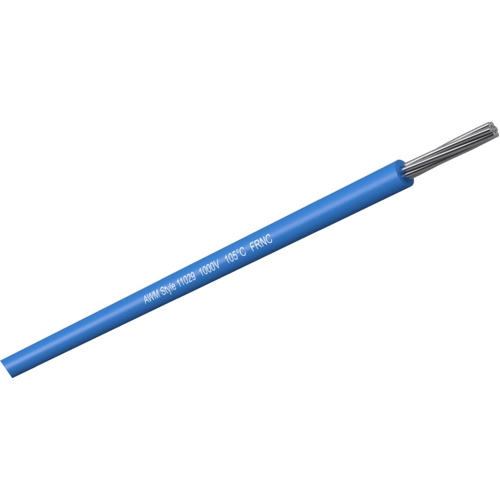

Stranded wire, 098181907, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 2 mm | |
| Rated voltage | 1000 V | |
| Halogen free | Yes | |
| Material | LSZH | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Cable structure | 19 x 0.254 mm | |
| Core insulation material | mPPE | |
| AWG cross-section | AWG 18/19 | |
| Standard number | UL, cUL | |
| Temperature range (active) | -20 °C to 105 °C | |
| Cable material | copper, tin-plated | |
| Colour | blue | |
| Cable cross-section | 0.88 mm² | |
| Test voltage | 10 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 250 meters |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
