098181902 | Kabeltronik

MPPE-switching strand, halogen free, UL-Style 11029, 0.88 mm², AWG 18/19, 19 x 0.254 mm, brown, outer Ø 2 mm, 098181902

Order No.: 92F413
EAN: 4099891600358
MPN:
098181902
Series: UL-Style 11029
098181902 Kabeltronik Insulated stranded wires

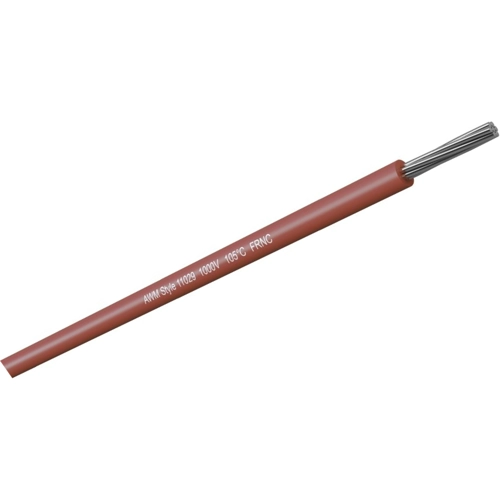

Image may differ
Unit Price (€ / mtr.)
0.8568 € *
Available in 7 Days: 1,740 mtr. - if ordered today
Total Price:
214.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 mtr.
0.8568 €

Stranded wire, 098181902, Kabeltronik

This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.

Features

  • Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
  • Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
  • Higher electrical strength
  • Larger insulation resistance
Technical specifications
AWG cross-section AWG 18/19
Outer diameter 2 mm
Standard number UL, cUL
Core insulation material mPPE
Temperature range (active) -20 °C to 105 °C
Material LSZH
Cable material copper, tin-plated
Cable cross-section 0.88 mm²
Temperature range (unmoved) -40 °C to 105 °C
Rated voltage 1000 V
Cable structure 19 x 0.254 mm
Test voltage 10 kV
Colour brown
Halogen free Yes
Logistics
Customs tariff number 85444995
Country of origin DE
Original Packaging Reel with 250 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
