MPPE-switching strand, halogen free, UL-Style 11029, 1.38 mm², AWG 16/19, 19 x 0.3 mm, blue, outer Ø 2.2 mm, 098161907
Unit Price (€ / mtr.)
1.0353 € *
Available: 250 mtr.
Available in 7 Days: 3,620 mtr. - if ordered today

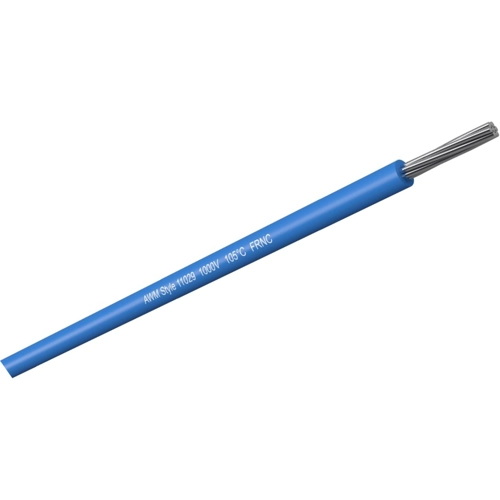

Stranded wire, 098161907, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | LSZH | |
| Cable material | copper, tin-plated | |
| Core insulation material | mPPE | |
| Test voltage | 10 kV | |
| Cable cross-section | 1.38 mm² | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Temperature range (active) | -20 °C to 105 °C | |
| Standard number | UL, cUL | |
| Cable structure | 19 x 0.3 mm | |
| Outer diameter | 2.2 mm | |
| Colour | blue | |
| Rated voltage | 1000 V | |
| Halogen free | Yes | |
| AWG cross-section | AWG 16/19 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 250 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
