098161902 | Kabeltronik

MPPE-switching strand, halogen free, UL-Style 11029, 1.38 mm², AWG 16/19, 19 x 0.3 mm, brown, outer Ø 2.2 mm, 098161902

Order No.: 92F419
EAN: 4099891965044
MPN:
098161902
Series: UL-Style 11029
098161902 Kabeltronik Insulated stranded wires

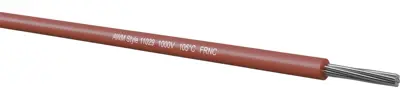

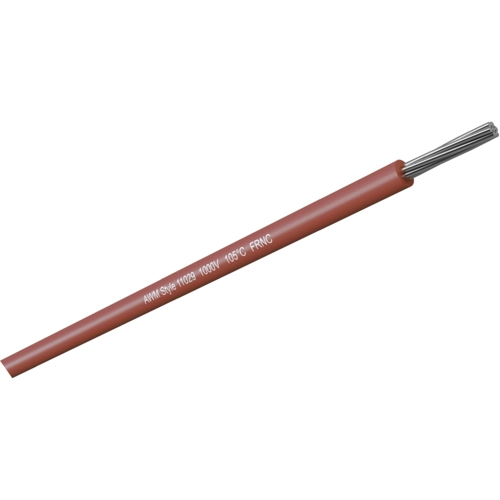

Image may differ
Unit Price (€ / mtr.)
1.0353 € *
Available in 7 Days: 1,510 mtr. - if ordered today
Total Price:
258.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
250 mtr.
1.0353 €

Stranded wire, 098161902, Kabeltronik

UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wire acc. to UL is primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.

Technical specifications
Filter Property Value
Cable material copper, tin-plated
Core insulation material mPPE
Test voltage 3 kV
Cable cross-section 1.38 mm²
Temperature range (unmoved) -40 °C to 105 °C
Temperature range (active) -20 °C to 105 °C
Standard number UL, cUL
Cable structure 19 x 0.3 mm
Outer diameter 2.2 mm
Colour brown
Rated voltage 1 kV
Halogen free Yes
AWG cross-section AWG 16/19
Logistics
Property Value
Original Packaging Reel with 250 meters
Customs tariff number 85444995
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
