092287010 | Kabeltronik

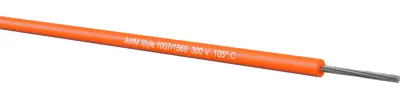

PVC-switching strand, UL-Style 1007/1569, 0.09 mm², AWG 28, 7 x 0.127 mm, orange, outer Ø 1.2 mm, 092287010
Unit Price (€ / mtr.)
0.2416 € *
Available in 7 Days: 2,489 mtr. - if ordered today
PVC stranded wire, 092287010, Kabeltronik
The 092287010 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 300 V | |
| Colour | orange | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Core insulation material | PVC | |
| Outer diameter | 1.2 mm | |
| Halogen free | No | |
| Cable structure | 7 x 0.127 mm | |
| Test voltage | 3 kV | |
| Temperature range (active) | -5 °C to 105 °C | |
| AWG cross-section | AWG 28 | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.09 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
