092201803 | Kabeltronik

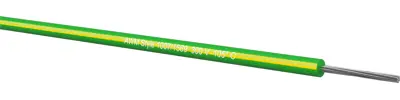

PVC-switching strand, UL-Style 1007/1569, 0.56 mm², AWG 20, 18 x 0.2 mm, green, outer Ø 1.9 mm, 092201803
Unit Price (€ / mtr.)
0.4760 € *
Next delivery: 250 mtr. on 2025-10-02
Available in 7 Days: 1,200 mtr. - if ordered today
PVC stranded wire, 092201803, Kabeltronik
The 092201803 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Cable cross-section | 0.56 mm² | |
| Halogen free | No | |
| Rated voltage | 300 V | |
| Temperature range (active) | -5 °C to 105 °C | |
| Cable structure | 18 x 0.2 mm | |
| Colour | green | |
| Core insulation material | PVC | |
| Outer diameter | 1.9 mm | |
| Test voltage | 3 kV | |
| AWG cross-section | AWG 20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 250 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
