092182801 | Kabeltronik

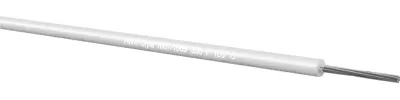

PVC-switching strand, UL-Style 1007/1569, 0.88 mm², AWG 18, 28 x 0.2 mm, white, outer Ø 2.15 mm, 092182801
Unit Price (€ / mtr.)
0.6783 € *
Available in 7 Days: 3,750 mtr. - if ordered today
PVC stranded wire, 092182801, Kabeltronik
The 092182801 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, tin-plated | |
| Core insulation material | PVC | |
| Test voltage | 3 kV | |
| Cable cross-section | 0.88 mm² | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Temperature range (active) | -5 °C to 105 °C | |
| Cable structure | 28 x 0.2 mm | |
| Outer diameter | 2.15 mm | |
| Colour | white | |
| Rated voltage | 300 V | |
| Halogen free | No | |
| AWG cross-section | AWG 18 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 250 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
