092164408 | Kabeltronik

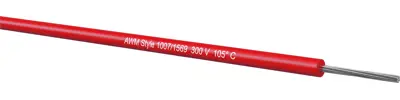

PVC-switching strand, UL-Style 1007/1569, 1.38 mm², AWG 16, 44 x 0.2 mm, red, outer Ø 2.5 mm, 092164408
Unit Price (€ / mtr.)
0.8925 € *
Available: 250 mtr.
Available in 7 Days: 2,250 mtr. - if ordered today
PVC stranded wire, 092164408, Kabeltronik
The 092164408 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Outer diameter | 2.5 mm | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 105 °C | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 1.38 mm² | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Rated voltage | 300 V | |
| Cable structure | 44 x 0.2 mm | |
| Test voltage | 3 kV | |
| Colour | red | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 250 meters |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
