092164402 | Kabeltronik

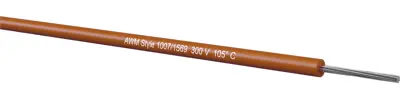

PVC-switching strand, UL-Style 1007/1569, 1.38 mm², AWG 16, 44 x 0.2 mm, brown, outer Ø 2.5 mm, 092164402
Unit Price (€ / mtr.)
0.8925 € *
Available: 250 mtr.
Available in 7 Days: 4,640 mtr. - if ordered today
PVC stranded wire, 092164402, Kabeltronik
The 092164402 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.38 mm² | |
| AWG cross-section | AWG 16 | |
| Product type | switching strand | |
| Core insulation material | PVC | |
| Test voltage | 3 kV | |
| Colour | brown | |
| Rated voltage | 300 V | |
| Cable structure | 44 x 0.2 mm | |
| Halogen free | No | |
| Temperature range (active) | -5 °C to 105 °C | |
| Outer diameter | 2.5 mm | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -30 °C to 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 250 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
