091267009 | Kabeltronik

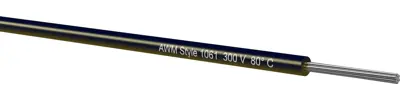

PVC-switching strand, UL-Style 1061/10002, 0.14 mm², AWG 26, 7 x 0.16 mm, black, outer Ø 1.05 mm, 091267009
Unit Price (€ / mtr.)
0.2023 € *
Available in 7 Days: 11,093 mtr. - if ordered today
PVC stranded wire, 091267009, Kabeltronik
The 091267009 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 1.05 mm | |
| Test voltage | 1.5 kV | |
| Rated voltage | 300 V | |
| Core insulation material | PVC | |
| Halogen free | No | |
| Cable cross-section | 0.14 mm² | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Cable structure | 7 x 0.16 mm | |
| Colour | black | |
| Product type | switching strand | |
| AWG cross-section | AWG 26 | |
| Temperature range (active) | -5 °C to 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
