091247008 | Kabeltronik

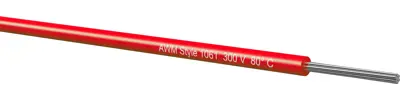

PVC-switching strand, UL-Style 1061/10002, 0.22 mm², AWG 24, 7 x 0.2 mm, red, outer Ø 1.15 mm, 091247008
Unit Price (€ / mtr.)
0.2380 € *
Available: 1,000 mtr.
Available in 7 Days: 8,155 mtr.
Leadtime: 1 Week **
PVC stranded wire, 091247008, Kabeltronik
The 091247008 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).
Technical specifications
| AWG cross-section | AWG 24 | |
| Outer diameter | 1.15 mm | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 105 °C | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.22 mm² | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Rated voltage | 300 V | |
| Cable structure | 7 x 0.2 mm | |
| Test voltage | 1.5 kV | |
| Colour | red | |
| Halogen free | No |
Download
Logistics
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Reel with 500 meters |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
