091227008 | Kabeltronik

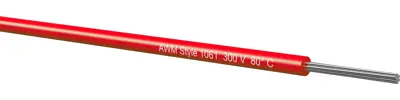

PVC-switching strand, UL-Style 1061/10002, 0.34 mm², AWG 22, 7 x 0.25 mm, red, outer Ø 1.3 mm, 091227008

Order No.: 91F6914
EAN: 4099891962852
MPN:
091227008
091227008 Kabeltronik Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.3094 € *
Available: 1,500 mtr.
Next delivery: 500 mtr. on 2025-07-11
Available in 7 Days: 13,510 mtr. - if ordered today
Total Price:
154.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 mtr.
0.3094 €

PVC stranded wire, 091227008, Kabeltronik

The 091227008 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).

Technical specifications
Filter Property Value
Outer diameter 1.3 mm
Rated voltage 300 V
Halogen free No
Temperature range (unmoved) -30 °C to 105 °C
Cable structure 7 x 0.25 mm
Core insulation material PVC
AWG cross-section AWG 22
Temperature range (active) -5 °C to 105 °C
Cable material copper, tin-plated
Colour red
Cable cross-section 0.34 mm²
Test voltage 1.5 kV
Logistics
Property Value
Country of origin DE
Customs tariff number 85444995
Original Packaging Reel with 500 meters
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
