091227004 | Kabeltronik

PVC-switching strand, UL-Style 1061/10002, 0.34 mm², AWG 22, 7 x 0.25 mm, yellow, outer Ø 1.3 mm, 091227004

Order No.: 91F6910
EAN: 4099891962814
MPN:
091227004
091227004 Kabeltronik Insulated stranded wires

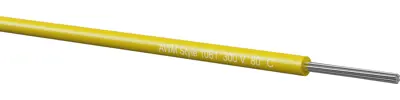

Image may differ
Unit Price (€ / mtr.)
0.3094 € *
Available: 500 mtr.
Available in 7 Days: 1,500 mtr.
Leadtime: 1 Week **
Total Price:
154.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 mtr.
0.3094 €

PVC stranded wire, 091227004, Kabeltronik

The 091227004 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).

Technical specifications
Outer diameter 1.3 mm
Test voltage 1.5 kV
Temperature range (active) -5 °C to 105 °C
Core insulation material PVC
Cable structure 7 x 0.25 mm
Rated voltage 300 V
Cable material copper, tin-plated
Halogen free No
Colour yellow
Temperature range (unmoved) -30 °C to 105 °C
AWG cross-section AWG 22
Cable cross-section 0.34 mm²
Logistics
Original Packaging Reel with 500 meters
Customs tariff number 85444995
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
