091227003 | Kabeltronik

PVC-switching strand, UL-Style 1061/10002, 0.34 mm², AWG 22, 7 x 0.25 mm, green, outer Ø 1.3 mm, 091227003

Order No.: 91F6911
EAN: 4099891962821
MPN:
091227003
091227003 Kabeltronik Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.3094 € *
Available: 500 mtr.
Available in 7 Days: 1,500 mtr.
Leadtime: 1 Week **
Total Price:
154.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 mtr.
0.3094 €

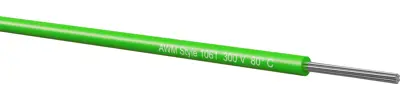

PVC stranded wire, 091227003, Kabeltronik

The 091227003 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).

Technical specifications
Outer diameter 1.3 mm
Test voltage 1.5 kV
Temperature range (active) -5 °C to 105 °C
Core insulation material PVC
Cable structure 7 x 0.25 mm
Rated voltage 300 V
Cable material copper, tin-plated
Halogen free No
Colour green
Temperature range (unmoved) -30 °C to 105 °C
AWG cross-section AWG 22
Cable cross-section 0.34 mm²
Logistics
Original Packaging Reel with 500 meters
Customs tariff number 85444995
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
