091227001 | Kabeltronik

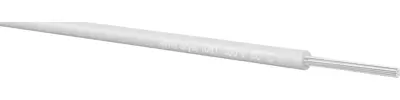

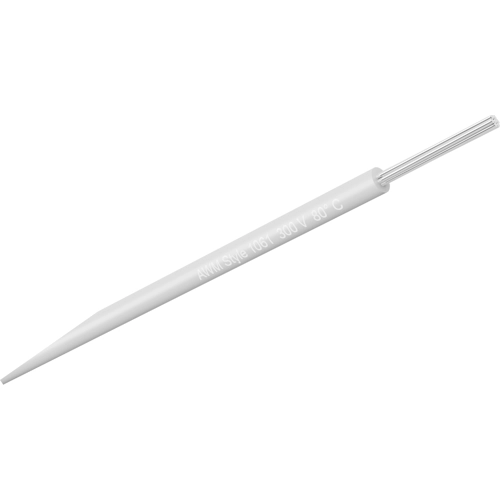

PVC-switching strand, UL-Style 1061/10002, 0.34 mm², AWG 22, 7 x 0.25 mm, white, outer Ø 1.3 mm, 091227001
Unit Price (€ / mtr.)
0.3094 € *
Available in 7 Days: 4,805 mtr. - if ordered today
PVC stranded wire, 091227001, Kabeltronik
The 091227001 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 300 V | |
| Cable cross-section | 0.34 mm² | |
| Test voltage | 1.5 kV | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Cable material | copper, tin-plated | |
| Outer diameter | 1.3 mm | |
| AWG cross-section | AWG 22 | |
| Core insulation material | PVC | |
| Cable structure | 7 x 0.25 mm | |
| Colour | white | |
| Temperature range (active) | -5 °C to 105 °C | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
