091207008 | Kabeltronik

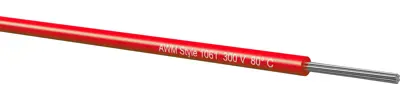

PVC-switching strand, UL-Style 1061/10002, 0.56 mm², AWG 20, 7 x 0.32 mm, red, outer Ø 1.5 mm, 091207008
Unit Price (€ / mtr.)
0.3927 € *
Available: 500 mtr.
Available in 7 Days: 8,489 mtr. - if ordered today
PVC stranded wire, 091207008, Kabeltronik
The 091207008 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 105 °C | |
| Test voltage | 1.5 kV | |
| Colour | red | |
| Halogen free | No | |
| Outer diameter | 1.5 mm | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Rated voltage | 300 V | |
| Product type | switching strand | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.56 mm² | |
| Cable structure | 7 x 0.32 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 500 meters |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
