089240701 | Kabeltronik
MPPE-switching strand, halogen free, UL-Style 11030, 0.23 mm², AWG 24/7, 7 x 0.200 mm, white, outer Ø 0.92 mm, 089240701
Unit Price (€ / mtr.)
0.4165 € *
Available in 7 Days: 1,965 mtr. - if ordered today

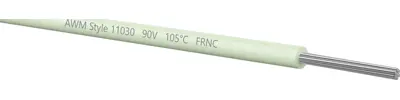

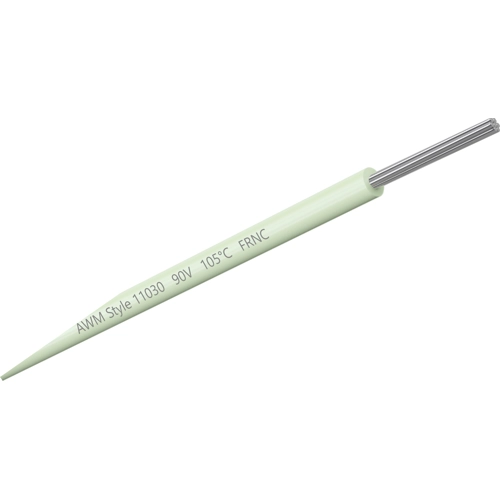

Stranded wire, 089240701, Kabeltronik
UL/cUL stranded wire in halogen free and flame retardant construction. The mPPE-material allows very small outer diameters and doesn't contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wire. Stranded wire according to UL is primarily used for the internal wiring in electrical equipment as well as electrical control boxes and is steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
- FRNC (LSZH), flame retardant, zero halogen, low flue gas, non-corrosive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | LSZH | |
| AWG cross-section | AWG 24/7 | |
| Rated voltage | 90 V | |
| Cable material | copper, tin-plated | |
| Test voltage | 1 kV | |
| Product type | switching strand | |
| Temperature range (active) | -25 °C to 105 °C | |
| Cable structure | 7 x 0.200 mm | |
| Standard number | UL, cUL | |
| Bending radius unmoved | 10 mm | |
| Bending radius moved | 15 mm | |
| Core insulation material | mPPE | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Colour | white | |
| Outer diameter | 0.92 mm | |
| Cable cross-section | 0.23 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
