089220701 | Kabeltronik

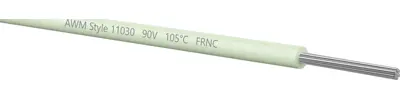

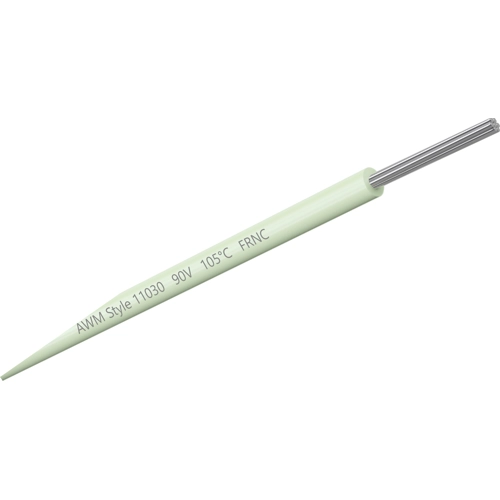

MPPE-switching strand, halogen free, UL-Style 11030, 0.34 mm², AWG 22/7, 7 x 0.250 mm, white, outer Ø 1.07 mm, 089220701
Unit Price (€ / mtr.)
0.4522 € *
Available: 100 mtr.
Available in 7 Days: 1,695 mtr. - if ordered today
Stranded wire, 089220701, Kabeltronik
UL/cUL stranded wire in halogen free and flame retardant construction. The mPPE-material allows very small outer diameters and doesn't contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wire. Stranded wire according to UL is primarily used for the internal wiring in electrical equipment as well as electrical control boxes and is steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
- FRNC (LSZH), flame retardant, zero halogen, low flue gas, non-corrosive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 1.07 mm | |
| Test voltage | 1 kV | |
| Rated voltage | 90 V | |
| Core insulation material | mPPE | |
| Halogen free | Yes | |
| Bending radius unmoved | 10 mm | |
| Cable cross-section | 0.34 mm² | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -40 °C to 105 °C | |
| Standard number | UL, cUL | |
| Cable structure | 7 x 0.250 mm | |
| Bending radius moved | 15 mm | |
| Colour | white | |
| Material | LSZH | |
| Product type | switching strand | |
| AWG cross-section | AWG 22/7 | |
| Temperature range (active) | -25 °C to 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
