089200707 | Kabeltronik

MPPE-switching strand, halogen free, UL-Style 11030, 0.56 mm², AWG 20/7, 7 x 0.320 mm, blue, outer Ø 1.27 mm, 089200707

Order No.: 91F6941
EAN: 4099891963187
MPN:
089200707
Series: UL-Style 11030
089200707 Kabeltronik Insulated stranded wires

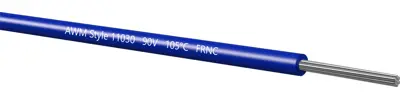

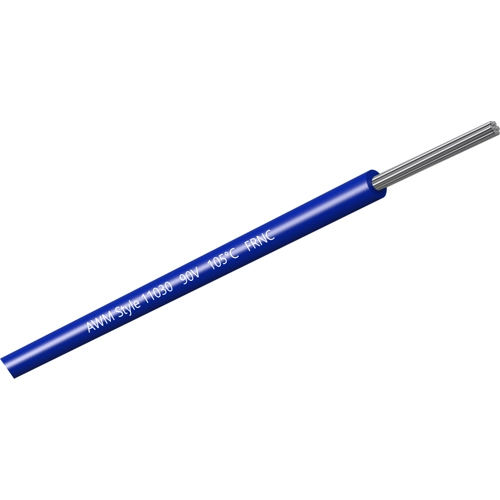

Image may differ
Unit Price (€ / mtr.)
0.5355 € *
Available: 100 mtr.
Available in 7 Days: 1,400 mtr. - if ordered today
Total Price:
53.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
0.5355 €

Stranded wire, 089200707, Kabeltronik

UL/cUL stranded wire in halogen free and flame retardant construction. The mPPE-material allows very small outer diameters and doesn't contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wire. Stranded wire according to UL is primarily used for the internal wiring in electrical equipment as well as electrical control boxes and is steady to a large extent against acids, caustic solutions and many oils.

Features

  • Trend-setting, because environment friendly and recyclable
  • Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
  • Higher electrical strength
  • Larger insulation resistance
  • FRNC (LSZH), flame retardant, zero halogen, low flue gas, non-corrosive
Technical specifications
AWG cross-section AWG 20/7
Outer diameter 1.27 mm
Standard number UL, cUL
Core insulation material mPPE
Temperature range (active) -25 °C to 105 °C
Material LSZH
Cable material copper, tin-plated
Cable cross-section 0.56 mm²
Bending radius unmoved 10 mm
Bending radius moved 15 mm
Temperature range (unmoved) -40 °C to 105 °C
Rated voltage 90 V
Cable structure 7 x 0.320 mm
Test voltage 1 kV
Colour blue
Halogen free Yes
Logistics
Customs tariff number 85444995
Country of origin DE
Original Packaging Reel with 100 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
