070108008 | Kabeltronik

PVC-switching wire, Yv, 1 x 0.8 mm, red, outer Ø 1.4 mm, 070108008

Order No.: 92F976
EAN: 4099891957834
MPN:
070108008
Series: Yv
070108008 Kabeltronik Insulated stranded wires

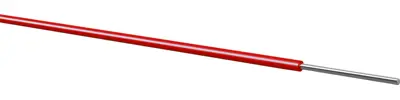

Image may differ
Unit Price (€ / mtr.)
0.4403 € *
Available: 100 mtr.
Available in 7 Days: 25,560 mtr. - if ordered today
Total Price:
44.03 € *
Price list
Quantity
Price per unit*
100 mtr.
0.4403 €
500 mtr.
0.3927 €
1000 mtr.
0.3451 €
2500 mtr.
0.3094 €
5000 mtr.
0.2785 €
*incl. VAT plus shipping costs
Subject to prior sale

PVC Hook-up wire, 070108008, Kabeltronik

The 070108008 is a PVC hook-up wire with communication technology, telecommunication installations as well as in all fields of general wiring technology.

Technical specifications
Outer diameter 1.4 mm
Core insulation material PVC
Temperature range (active) 5 °C to 70 °C
Conductor category CL.1 = stranded
Cable material copper, tin-plated
Temperature range (unmoved) -30 °C to 70 °C
Rated voltage 900 V
Cable structure 1 x 0.8 mm
Test voltage 2.5 kV
Colour red
Halogen free No
Logistics
Customs tariff number 85444991
Country of origin DE
Original Packaging Ring with 100 meters
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
