5308267H0 | Kabeltronik
FRNC data cable, Cat 7, LAN, 8-wire, AWG 26-7, black, 5308267H0
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
2.3681 € *
Available: 100 mtr.
Available in 7 Days: 5,999 mtr. - if ordered today

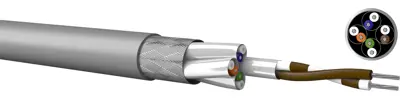

Data cable, 5308267H0, Kabeltronik
Data cable for local area networks (LAN) up to 600 MHz. By using of flexible conductors suitable e.g. for device connection or as patch cable for rack-wiring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | data cable | |
| Number of cores | 8 | |
| AWG cross-section | AWG 26-7 | |
| Outer diameter | 6 mm | |
| Bussystem | LAN | |
| Category | Cat 7 | |
| Colour | black | |
| Material | FRNC | |
| Cable material | copper, tin-plated | |
| Core insulation material | PE | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Temperature range (unmoved) | -20 °C to 60 °C | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | DE |
| Original Packaging | Ring with 100 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
