530126703 | Kabeltronik
PUR ethernet cable, 2-wire, AWG 26-7, green, 530126703
Order No.: 96F150
EAN: 4099891267346
MPN:
530126703
Unit Price (€ / mtr.)
5.6525 € *
Available in 7 Days: 1,198 mtr. - if ordered today

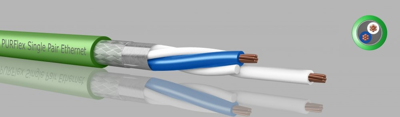

PUR data cable, 530126703, Kabeltronik
Single pair ethernet cable suitable for drag chains for robust and flexible connections of sensors and actuators in machine and plant engineering as well as applications in building, automation and vehicle technology, where cables are permanently moved and mechanically stressed.
SPE supports Power over Data Line (PoDL) up to 50 watts. This allows connected devices to be supplied with power via the Ethernet line.
Features
- Oil-resistant
- Flame-retardant
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 4.7 mm | |
| Version | ethernet cable | |
| Core insulation material | special polyolefin | |
| Halogen free | Yes | |
| Cable material | copper | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Shielding | shielded | |
| Drag chain suitable | Yes | |
| Colour | green | |
| Material | PUR | |
| Number of cores | 2 | |
| AWG cross-section | AWG 26-7 | |
| Temperature range (active) | -30 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
