097082809 | Kabeltronik
Special PVC data cable, 8-wire, AWG 28, black, 097082809
Unit Price (€ / mtr.)
3.0583 € *
Available in 7 Days: 3,170 mtr. - if ordered today
Total Price:
305.83 € *
Price list
Quantity
Price per unit*
100 mtr.
3.0583 €
500 mtr.
2.7608 €
1000 mtr.
2.4514 €
*incl. VAT plus shipping costs
Subject to prior sale

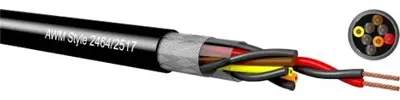

PVC data cable, 097082809, Kabeltronik
For connections in all fields of the measuring and control engineering as well as in signal and impulse technology. Because of SR-PVC is used as core insulation this model is very suitable for gumption clamping technology.
The outer jacket is to a very large extend resistant against oils, petrol, and weather-proof as well as UV-resistant by special PVC. The screening prevents electrical noice of inuences to a large extend.
Features
- Oil-resistant
- Petrol-resistant
- UV-resistant
- Weather-proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 5.9 mm | |
| Temperature range (unmoved) | -30 °C to 105 °C | |
| Shielding | shielded | |
| Halogen free | No | |
| Number of cores | 8 | |
| Material | special PVC | |
| Version | data cable | |
| Colour | black | |
| Core insulation material | special PVC | |
| Cable material | copper, tin-plated | |
| Temperature range (active) | -15 °C to 105 °C | |
| AWG cross-section | AWG 28 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ring with 100 meters |
| Customs tariff number | 85444995 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
